Intel X3 · T-HS202302

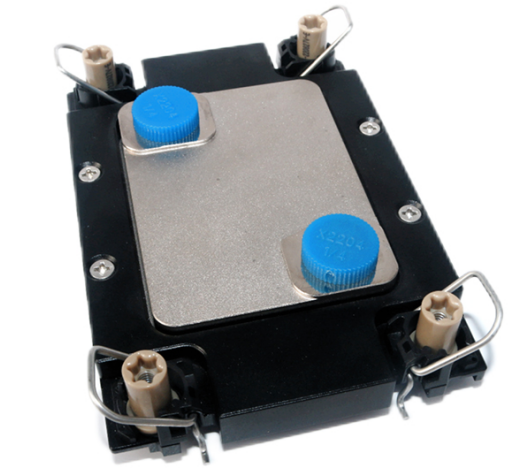

Intel X3 CPU Liquid Cold Plate for Australia
ToneCooling Australia supplies copper liquid cold plates for the Intel X3 server CPU — model T-HS202302, 270 W rated, 45% PGW coolant. Design, engineering and manufacturing at our IATF 16949-aligned facility in Huizhou; customer engineering support from Carlton, Victoria.
ToneCooling Australia manufactures copper liquid cold plates for Intel X3 server CPU deployments — rated to 270 W at 45°C inlet with 45% PGW coolant. Manufacturing is in Huizhou, Guangdong, China.
Validated specifications
| Heat dissipation | 270 W |
|---|---|
| Cold plate material | Copper |
| Joining process | Confirmed at quotation (DFM review) |
| Coolant / medium | 45% PGW |
| Feed liquid temperature | 45°C inlet |
| Cold-plate surface temperature | ≤56°C at rated load |
| Flow rate / pressure drop | 1 LPM at 1.5 kPa |
| Maximum working pressure | 1 MPa |
| Dimensions | 113 × 78 × 20.5 mm |
Related cold plates
Frequently asked questions
Do you supply liquid cold plates for Intel X3 servers?
Yes. ToneCooling Australia supplies a copper liquid cold plate (model T-HS202302) rated to 270W for Intel X3 server CPU deployments.
What coolant and flow rate does it use?
Rated performance is tested with 45% PGW coolant at 45°C inlet, 1 LPM flow rate at approximately 1.5 kPa pressure drop, holding surface temperature at or below 56°C.
Can the design be customised?
Yes. Port locations, mounting pattern, dimensions and surface finish are customised from your drawings, with CFD validating the change before tooling.
What is the Quantity and lead time?
Prototype orders start from 1 piece with a 4–6 week prototype lead time from approved drawing and purchase order; production lead time is confirmed per volume.
Where is this cold plate manufactured?
Manufacturing is performed at the ToneCooling facility in Huizhou, Guangdong, China. ToneCooling Australia Pty Ltd (Carlton, VIC) is the AU RFQ and engineering-coordination entity and does not manufacture.
How is this different from a retail CPU cooler?
This is an engineered industrial cold plate validated to IATF 16949-aligned processes with per-unit leak testing and DFM engineering review — not a retail desktop cooling product.
Request an X3 cold plate quote
Send your board layout, heat load and mounting pattern. Our Carlton team responds with a DFM review and quotation.
Request a Quote
