Liquid Cold Plate Products for Australian Buyers
ToneCooling Australia is a liquid cold plate supplier focused on AI server, data centre, BESS, power electronics, and industrial applications for AU engineering teams. Liquid cold plate products supplied to AU programmes include four families: GPU cold plates for the NVIDIA GB200 / GB300 / H200 platforms, CPU cold plates for AMD EPYC SP5 and Intel Birch Stream, BESS cold plates (TC-1P104S and variants) for grid-scale battery storage, and custom-manufactured OEM programmes. All liquid cold plate products are designed, engineered, and manufactured at our IATF 16949-aligned partner facility in Huizhou, Guangdong, China; the Carlton, Victoria team delivers customer engineering support and AS/NZS compliance documentation for AU buyers. Global SKU catalogue ↗
Watch · 0:30 Product Walkthrough
Australian engineers — see how a ToneCooling cold plate kit ships
Engineering authority condensed into 30 seconds
For Australian engineers and procurement teams evaluating cold plate suppliers without flying to Huizhou — see the kit, the leak test, the C-scan, and the AS/NZS scope without sitting through a 20-minute capabilities deck.
- 0:00Brand & AU programme positioning
- 0:05NVIDIA GB200 → grid-scale BESS scope
- 0:11Pre-assembled kit, helium-leak verified
- 0:18100 % C-scan · AS/NZS 5139 design-aware
- 0:23Carlton VIC 24 h response · RFQ contact
helium leak
C-scan
60068
response
partner facility
Origin
Bianca module · TLP or vacuum brazed · 100 % C-scan → Read the TC-1P104S BESS spec
39.1 kg AL3003MOD · 4 Pa leak · 6.2 °C ΔT → Send your design brief
TDP map · ΔP target · 24 h Carlton response →
Step 1 · Choose Your Product Family
Which cold plate fits your Australian programme?
NVIDIA Bianca / 8-GPU baseboard / hyperscale CPU
Direct-to-chip cooling for sovereign cloud, Pawsey/NCI HPC refresh, AI cluster builds. Pressure-drop budget tuned to your CDU vendor.
50/50 EGW · 32 °C inlet
AEMO ISP / CIS battery storage projects
1P104S battery module thermal hardware. AS/NZS 5139 design-aware, PFAS-free SGS-certified, ChAFTA Certificate of Origin.
104 cells · 6.2 °C ΔT
IGBT / SiC for grid-forming inverters & traction
Custom footprints for Infineon, Semikron, Wolfspeed modules. AS/NZS 4777.2 design-aware. Heavy-EV, rail traction, PCS programmes.
TLP vs vacuum braze
Laser source / medical imaging / robotics / welding
Custom geometry, materials, joining processes. Copper / aluminium / stainless steel substrate. PPAP Levels 1–5 documentation.
Dh ≤ 1.5 mm
Step 2 · Product Family Detail
What liquid cold plate products does ToneCooling Australia supply to AU buyers?

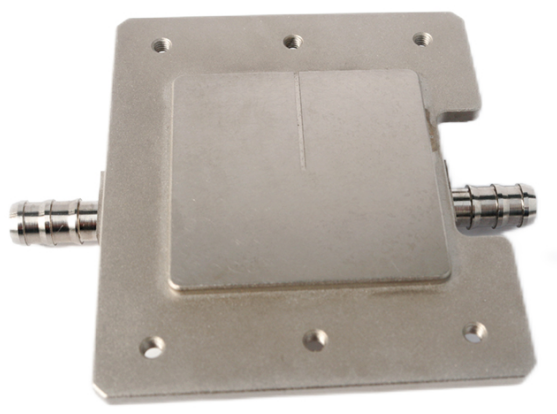

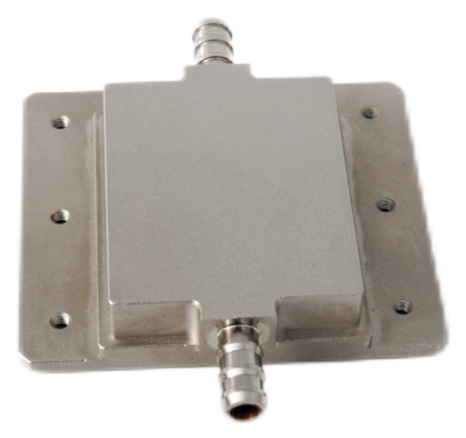

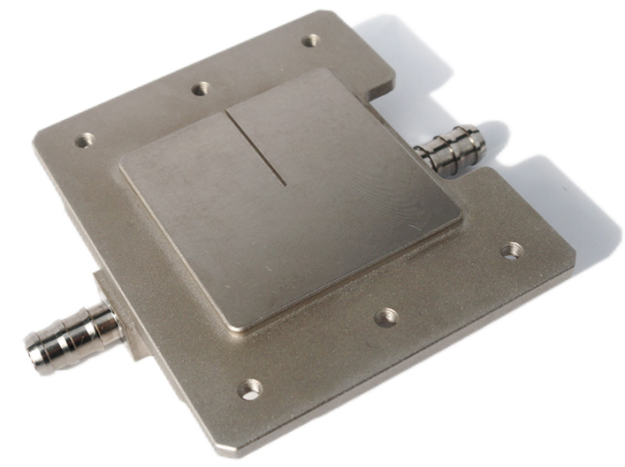

GPU Cold Plates
NVIDIA GB200 (2,700 W per Bianca module), GB300 (engineering preview), H200 (8-GPU baseboard kit). TLP diffusion-bonded copper or vacuum-brazed.
CPU Cold Plates
AMD EPYC SP5 (LGA6096 — Genoa, Bergamo, Genoa-X, Turin), Intel Birch Stream (Granite Rapids, Sierra Forest). 350–500 W reference TDP.
BESS Cold Plates · TC-1P104S
39.1 kg AL3003MOD stamped-brazed plate for 1P104S battery modules. Real test data: 4 Pa leak, 21.2 kPa ΔP, 6.2 °C cell-top ΔT.
Custom Cold Plate Manufacturing
OEM-custom programmes: AI server, BESS, power electronics, heavy-EV, industrial. Custom geometry, materials, joining processes.
Step 3 · Engineering Quick-Reference
How do GPU, CPU, BESS, and custom cold plates compare on substrate, joining, and validation?
| Specification | GPU Cold Plates | CPU Cold Plates | BESS Cold Plates | Custom Manufacturing |
|---|---|---|---|---|
| Substrate options | Copper (C1100, C1020) | Copper / Aluminium | Aluminium AL3003MOD | Cu / Al / Stainless steel |
| Joining method | TLP diffusion bonding or vacuum brazing |
Vacuum braze · TLP · skive-and-bond |
Stamped-brazed (CAB) | TLP / vacuum braze / FSW / CAB |
| Target heat load | 2,700 W / Bianca module 700 W / GPU die |
350–500 W / SP5 socket up to 600 W Birch Stream |
15 W / cell typical (104 cells / module) |
Programme-specific |
| Coolant | 50/50 EGW · PG · DI water | 50/50 EGW · PG | 50/50 EGW · DI water | Application-specific |
| Target application | NVIDIA GB200/GB300/H200 direct-to-chip |
AMD EPYC SP5 Intel Birch Stream |
Grid-scale BESS 1P104S modules |
OEM thermal management across all sectors |
| Validation pack | Helium leak ≤1×10⁻⁹ + ultrasonic C-scan |
Helium leak ≤1×10⁻⁹ + AS/NZS 60068-2-14 |
Pressure decay 4 Pa + AS/NZS 5139 aware |
Customer-specified + PPAP 1–5 |
Step 4 · Commercial Reference
What are the lead time and commercial terms for Australian cold plate buyers?
| Product family | Prototype scope | Production scope | Documentation supplied |
|---|---|---|---|
| GPU Cold Plates | Programme-specific MOQ Lead time at quotation | Volume scope at quotation door-to-door to AU capital cities | Helium leak cert · Ultrasonic C-scan · ChAFTA |
| CPU Cold Plates | Programme-specific MOQ Lead time at quotation | Volume scope at quotation | Helium leak cert · ChAFTA · AS/NZS 60068-2-14 |
| BESS Cold Plates | Programme-specific MOQ Lead time at quotation | Volume scope at quotation | 4 Pa leak test · PFAS-free SGS · AS/NZS 5139 aware |
| Custom Manufacturing | Programme-specific MOQ 2–6 weeks (typical) | Volume + qualification scope at quotation | + PPAP Levels 1–5 · custom scope |
Step 5 · Compliance & Documentation
What documentation ships with every Australian cold plate order?
Helium leak inspection cert
≤ 1×10⁻⁹ mbar·L/s sensitivity, every production unit. HLT560 mass-spectrometer.
Ultrasonic C-scan report
100 % production C-scan for TLP and brazed bonds. Void-free interface verification.
Hydraulic ΔP test record
Pressure-drop verification at programme-specified flow rate and coolant chemistry.
AS/NZS 60068-2-14 thermal cycling
Endurance evidence across −40 °C to 150 °C and 20–98 % RH.
PFAS-free SGS certificate
SGS Shanghai per EN 17681-1:2022. Required for AU grid-scale BESS procurement.
ChAFTA Certificate of Origin
China-Australia Free Trade Agreement origin documentation. 0–5 % AU import duty.
RoHS 2.0 declaration
Material substrate restricted-substances declaration; aligned with EU RoHS Directive.
PPAP Levels 1–5
Production Part Approval Process — automotive, industrial, and rail traction OEM scope.
Lot traceability sheet
Material batch · production date · operator ID · QC inspector ID — full chain of custody.
Australian Programme Contexts
Where ToneCooling Australia cold plates fit in AU programmes
Australian sovereign cloud builds & HPC refresh
Pawsey Supercomputing Centre and NCI (National Computational Infrastructure) refresh cycles, plus Australian Government sovereign-cloud platform builds for defence, intelligence, and critical-infrastructure workloads. Direct-to-chip cooling on GB200 / GB300 / H200 + AMD SP5 platforms.
Australian colocation operator builds (Sydney, Melbourne, Perth)
AU-based colocation and hyperscale operators (NextDC, AirTrunk, Equinix-tier supply chain) deploying liquid-cooled GB200 NVL72 racks for AI tenants. Cold plate kits supplied with manifold, hose, and Stäubli/CPC quick-disconnect couplings as a pre-assembled, leak-tested unit.
AEMO ISP / Capacity Investment Scheme deployments
Australian grid-scale battery storage projects under AEMO Integrated System Plan and the Capacity Investment Scheme (CIS). 1P104S battery module thermal hardware design-aware to AS/NZS 5139 and AS/NZS 4777.2; PFAS-free SGS-certified per EN 17681-1:2022.
Inland Rail · Sydney Metro West · Cross River Rail traction
Custom IGBT and SiC cold plates for traction-inverter and motor-controller programmes on major Australian rail infrastructure builds. Footprints supported include Infineon, Semikron, Mitsubishi, Wolfspeed, and ROHM modules. PPAP Levels 1–5 for OEM Tier-1 / Tier-2 qualification.
Mining truck · electric bus · marine electrification
Custom cold plates for heavy-duty EV traction-inverter and battery-pack cooling: Australian mining-truck programmes (Fortescue, BHP, Rio Tinto pipelines), electric bus operators (Custom Denning, Volgren, BusTech context), and marine electrification (Incat, Austal context). Australian operating conditions: −40 °C to 150 °C, 20–98 % RH endurance.
Fibre laser · medical imaging · semiconductor & welding
Australian industrial OEMs across thermal-critical applications: fibre and CO₂ laser sources (IPG, Coherent, Trumpf platform context), medical CT/MRI gradient-coil cooling, semiconductor process tooling, robotics, and welding equipment. Custom geometry and substrate (Cu / Al / stainless steel) per programme.
All programme references describe Australian project contexts and segments. Specific customer engagements are coordinated under NDA — contact info@tonecooling.com.au for reference scope discussion under NDA.
Related Reading
Where can I read deeper engineering reference content?
TLP Diffusion Bonding
5-min cycle, 99% yield, 0.85 bond strength. Patented manufacturing IP.
AS/NZS Compliance
5139, 4777.2, 60068-2-14, 60529 + ChAFTA, RoHS, PFAS-free SGS.
AI Server Cooling Guide
12 sections — channel topology, ΔP budget, manifold, CDU compatibility.
RFQ Input Checklist
Technical inputs to accelerate Carlton-coordinated engineering response.
Step 6 · Send Your RFQ
Send your design brief — Carlton response within 24 working hours
Click into a liquid cold plate product page above for full specification, or send your design brief now. Carlton VIC will route to the correct Huizhou engineering team and reply with a thermal sensitivity table, process recommendation (TLP / vacuum braze / FSW / CAB), and draft quote in AUD.
