NVIDIA GB300 Cold Plate for Australia

A GB300 cold plate is a direct-to-chip liquid cooling plate that mounts on a GPU or Grace CPU in an NVIDIA GB300 (Grace Blackwell Ultra) compute tray and carries the heat into the rack coolant loop. ToneCooling Australia supplies the GB300 4G+2C kit — 4 GPU cold plates + 2 CPU cold plates (TC-BZP-GB300-01A) — to its datasheet, with thermal and pressure-drop data from a 2026-03-20 pure-water test. Engineering coordination is from Carlton, Victoria; the cold plates are made in our own manufacturing facility in Huizhou, China (IATF 16949-aligned).

0.0130 °C/WGPU cold plate thermal resistance (real test)
1066.94 WGPU cold plate heat load tested
0.0220 °C/WCPU cold plate thermal resistance (real test)
ToneCooling GB300 4G+2C liquid cold plate kit: 4 GPU cold plates and 2 CPU cold plates, real product photo
2026-03-20
batch validation test date
100 %
helium leak tested (criterion agreed per project)
4G+2C
4 GPU + 2 CPU cold plates per kit
1 piece
evaluation samples from a single piece

The ToneCooling GB300 cold plate kit for Australian and New Zealand AI data centres is a standard 4G+2C kit: in the 2026-03-20 pure-water test, each GPU cold plate removed 1,066.94 W at 1.7 L/min with 0.0130–0.0133 °C/W thermal resistance and 12.06 kPa pressure drop, and each CPU cold plate removed 485.46 W at 0.7 L/min with 0.0220 °C/W. These are measured values, not projections; the datasheet downloads without a form.

GB300 4G+2C cold plate kit (TC-BZP-GB300-01A), real product photo, ToneCooling
NVIDIA · GB300 · Grace Blackwell Ultra

GB300 GPU + CPU Cold Plate Kit (batch-validated)

Direct-to-chip cold plate kit for the NVIDIA GB300 platform — 4 GPU cold plates + 2 CPU cold plates (4G+2C), batch-tested 2026-03-20 with pure water at steady state.

Test date2026-03-20 (batch validation, pure water)
GPU cold plate — flow rate1.7 L/min
GPU cold plate — heat load tested1066.94 W
GPU cold plate — inlet / outlet temp19.9°C / 27.3°C
GPU cold plate — pressure drop12.06 kPa
GPU cold plate — thermal resistance0.0130–0.0133 °C/W
CPU cold plate — flow rate0.7 L/min
CPU cold plate — heat load tested485.46 W
CPU cold plate — inlet / outlet temp23.6°C / 31.5°C
CPU cold plate — pressure drop10.39 kPa
CPU cold plate — thermal resistance0.0220 °C/W
Thermal interface materialTC-5888 thermal paste
Cold plate materialCopper (grade confirmed at quotation)
Joining processConfirmed at quotation (DFM review)
Helium leak test100 % of units; acceptance criterion agreed per project
Test reportsThermal resistance, leak and flatness reports available

Test data from ToneCooling's 2026-03-20 batch validation run. Final performance depends on customer module drawings, coolant chemistry, and system-level flow distribution — confirmed per project.

Download the GB300 4G+2C datasheet (PDF, ToneCooling Australia) · model TC-BZP-GB300-01A · test date 2026-03-20

Request a GB300 cold plate quote

Kit assembly and design continuity from GB200

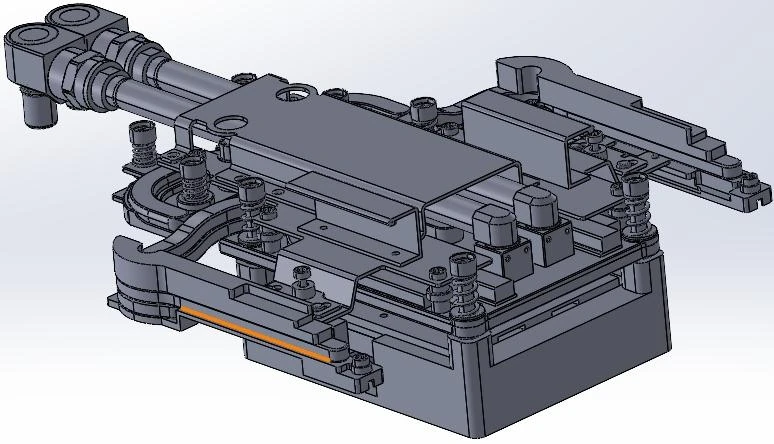

GB300 4G+2C cold plate kit CAD assembly model, ToneCooling
Assembly-level engineering drawing of the GB300 cold plate kit and manifold interface.

The GB300 4G+2C kit is a standard kit supplied to its datasheet, and evaluation samples are quoted from the same datasheet. In 2026 an advanced-engineering company in Victoria ordered several ToneCooling GB300-class liquid cold plate systems for liquid cooling evaluation. GB200 Bianca cold plate kits (2,700 W per module) and H200 8-GPU baseboard assemblies are also available, each with its own datasheet. See the full NVIDIA GPU cold plate catalogue.

GB300 vs GB200 cold plate: which kit fits your project?

Choose the GB300 4G+2C kit when your compute tray is NVIDIA GB300 (Grace Blackwell Ultra) and needs four GPU cold plates and two CPU cold plates; choose the GB200 kit when the tray is GB200 (Grace Blackwell), where one copper plate covers 2 × GPU + 1 Grace CPU. Both are standard ToneCooling kits supplied to their own datasheets. Your tray drawing, not the platform name, confirms mechanical fit.

Datasheet itemGB300 4G+2C kitGB200 kit
Part numberTC-BZP-GB300-01ATC-BZP-GB200-01A
Plates per set4 GPU cold plates + 2 CPU cold plates1 cold plate for 2 × GPU + 1 Grace CPU
Heat loadGPU plate 1,066.94 W; CPU plate 485.46 W (tested)1,200 W + 1,200 W + 300 W
Coolant and flowPure water; GPU 1.7 L/min, CPU 0.7 L/minPure water at 25 ± 2 °C; 2.5 L/min
Inlet / outlet (test)GPU 19.9 / 27.3 °C; CPU 23.6 / 31.5 °CCold plate surface below 43 °C
Pressure dropGPU 12.06 kPa; CPU 10.39 kPa35 ± 5 kPa
Thermal resistanceGPU 0.0130–0.0133 °C/W; CPU 0.0220 °C/WVerified per project by CFD
Material and joiningCopper; joining confirmed at quotation (DFM review)T2 copper; nitrogen-protected brazing + laser welding
Working pressure and sizeConfirmed against your tray drawing0.6 MPa; 235 × 190 × 30 mm
Thermal interface materialTC-5888 thermal pasteConfirmed at quotation
DatasheetGB300 4G+2C datasheet (PDF)GB200 datasheet (PDF)

Each column uses its own datasheet test or rating conditions, so the two kits are not compared like-for-like and the numbers should not be used to rank the platforms.

When to choose the GB300 4G+2C kit

  • Your trays are GB300 (Grace Blackwell Ultra) with four GPUs and two Grace CPUs.
  • You need measured per-plate thermal resistance and pressure drop to build the rack hydraulic budget.
  • You want one kit reference (TC-BZP-GB300-01A) for evaluation samples and later batches.

When to choose the GB200 kit

  • Your trays are GB200 (Grace Blackwell), for example GB200 NVL72-class racks.
  • You need a documented T2 copper plate with nitrogen-protected brazing + laser welding and a 0.6 MPa working pressure.
  • See the GB200 cold plate kit for Australia.

Both kits connect to the same rack manifold, quick-disconnect and coolant distribution unit (CDU) decisions; see AI server rack cold plates in Australia for what the rack must supply, and our New Zealand page for NZ projects.

How do you choose a GB300 cold plate supplier in Australia?

Shortlist a GB300 cold plate supplier only when it can show four things: a datasheet that states its test conditions, leak and thermal test reports for the units you receive, a clear line between standard kits and custom work, and an engineer who reviews your tray drawing before quoting. Use the checklist below; the right-hand column is what ToneCooling Australia provides.

CheckWhat to ask forToneCooling Australia
Test dataHeat load, flow, inlet temperature and pressure drop with the test date2026-03-20 pure-water test data in the table above; datasheet downloads without a form
Leak testingMethod and coverage100 % helium leak tested; acceptance criterion agreed per project
Test reportsReports that ship with the partsThermal resistance, leak and flatness test reports available
Standard or customWhich parts are catalogue kitsGB300 4G+2C, GB200, H200 and H100 are standard kits; other platforms are custom
SamplesMinimum sample quantityEvaluation samples from a single piece; quantity and cost confirmed in the quotation
Lead timeSample and batch lead timesSamples and prototypes typically 4–6 weeks (including design and simulation); batch normally 6–8 weeks, confirmed at quotation
ManufacturingWho makes the cold platesOur own manufacturing facility in Huizhou, IATF 16949-aligned; approx. 1,000,000 cold plates per year
Local entityWho you contract with in Australia and NZToneCooling Australia Pty Ltd, ABN 96 653 174 040, Carlton VIC

What to send with a GB300 cold plate RFQ

  • Tray or module drawing (STEP, PDF or DWG) and the platform revision.
  • Quantity: evaluation samples, pilot rack or batch, and the project stage.
  • Coolant (pure water, PG25 or other) and the CDU supply temperature and flow per tray.
  • Manifold and quick-disconnect interface, or ask us to propose one.
  • Delivery state in Australia, or New Zealand.

The kit covers the cold plates; GPUs, compute trays and servers are supplied by the customer or their integrator. An engineer reviews every RFQ and replies by email with next steps. Custom samples are available from a single piece.

Send a GB300 cold plate RFQ RFQ checklist

Frequently asked questions

Is real test data available for the GB300 cold plate?

Yes. ToneCooling batch-validated the GB300 GPU+CPU cold plate kit on 2026-03-20 with pure-water testing: GPU cold plate thermal resistance 0.0130–0.0133 °C/W at 1066.94 W heat load (12.06 kPa pressure drop, 1.7 L/min); CPU cold plate 0.0220 °C/W at 485.46 W (10.39 kPa pressure drop, 0.7 L/min). ToneCooling Australia coordinates GB300 RFQs from Carlton, Victoria; manufacturing is in Huizhou, China.

How does the GB300 cold plate differ from GB200?

They are separate kits for separate trays. The GB300 4G+2C kit (TC-BZP-GB300-01A) has 4 GPU and 2 CPU cold plates; each GPU plate was tested at 1,066.94 W, 1.7 L/min and 12.06 kPa. The GB200 kit (TC-BZP-GB200-01A) is one T2 copper plate rated 1,200 W + 1,200 W + 300 W at 2.5 L/min and 35 ± 5 kPa. Test conditions differ, so compare against your tray drawing, not headline numbers.

What validation applies to GB300 cold plates?

Every unit is helium leak tested (100 %), with the acceptance criterion agreed per project. Thermal resistance, leak and flatness test reports are available, and the GB300 datasheet can be downloaded without a form.

Who do I contact for a GB300 RFQ in Australia?

Contact the ToneCooling Australia team in Carlton, Victoria to request the full GB300 validation report and start an RFQ. Manufacturing origin is disclosed as Huizhou, Guangdong, China.

What is a GB300?

GB300 is NVIDIA’s Grace Blackwell Ultra platform. In the GB300 NVL72 rack, 72 Blackwell Ultra GPUs and 36 Grace CPUs are combined in a fully liquid-cooled, rack-scale design, so each GPU and CPU needs a direct-to-chip cold plate.

What is NVL72?

NVL72 is NVIDIA’s name for a rack-scale system with 72 GPUs connected by NVLink in one rack, used for both GB200 NVL72 and GB300 NVL72. Both are liquid-cooled racks, which is why cold plates, manifolds and a CDU are part of the design.

What is in a GB300 4 GPU + 2 CPU cold plate kit?

Four GPU cold plates and two CPU cold plates (4G+2C), kit reference TC-BZP-GB300-01A, tested with TC-5888 thermal paste. The adapter manifold, hose assemblies and quick disconnects are defined in the quotation against your tray drawing.

How much does a GB300 cold plate kit cost?

Pricing is quoted per project configuration. Send an RFQ with your tray drawing, quantity and coolant; an engineer reviews every RFQ and replies by email with next steps.

Can ToneCooling Australia supply GB300 cold plates to New Zealand?

Yes. New Zealand enquiries are handled by ToneCooling Australia Pty Ltd with the same GB300 datasheet and RFQ process. Include the delivery region and coolant specification in your RFQ; see our New Zealand page.

Request the GB300 validation report

Get the full 2026-03-20 test data and send your tray drawing to our Carlton team. An engineer reviews every RFQ and replies by email with next steps. Custom samples are available from a single piece.

Request a Quote Download the datasheet (PDF)

Sources and standards referenced: NVIDIA GB300 NVL72 · Open Compute Project – Cooling Environments · ASHRAE TC 9.9 Datacom Series. Performance values: ToneCooling datasheets TC-BZP-GB300-01A and TC-BZP-GB200-01A.
