IGBT Module · T-HS202334
IGBT Liquid Cold Plate for Australia

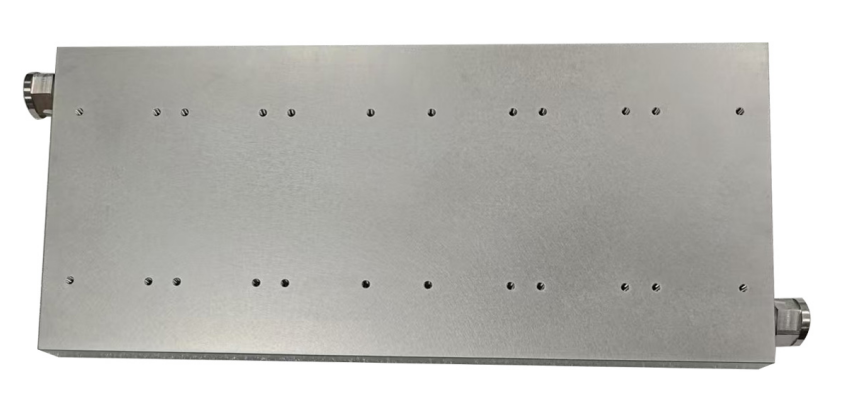

ToneCooling Australia supplies aluminium liquid cold plates for IGBT power modules — model T-HS202334, 2500 W×2 rated, vacuum brazed, 45% PGW coolant. Design, engineering and manufacturing at our IATF 16949-aligned facility in Huizhou; customer engineering support from Carlton, Victoria.
ToneCooling Australia manufactures aluminium liquid cold plates for IGBT power modules — vacuum brazed, rated to 2500 W×2 at 65°C inlet with 45% PGW coolant. Manufacturing is in Huizhou, Guangdong, China.
Validated specifications
| Heat dissipation | 2500 W × 2 |
|---|---|
| Cold plate material | Aluminium |
| Joining process | Vacuum brazing |
| Coolant / medium | 45% PGW |
| Feed liquid temperature | 65°C inlet |
| Cold-plate surface temperature | ≤70°C at rated load |
| Flow rate / pressure drop | 6 LPM at 60 kPa |
| Maximum working pressure | 1 MPa |
| Dimensions | 177 × 126 × 40 mm |
